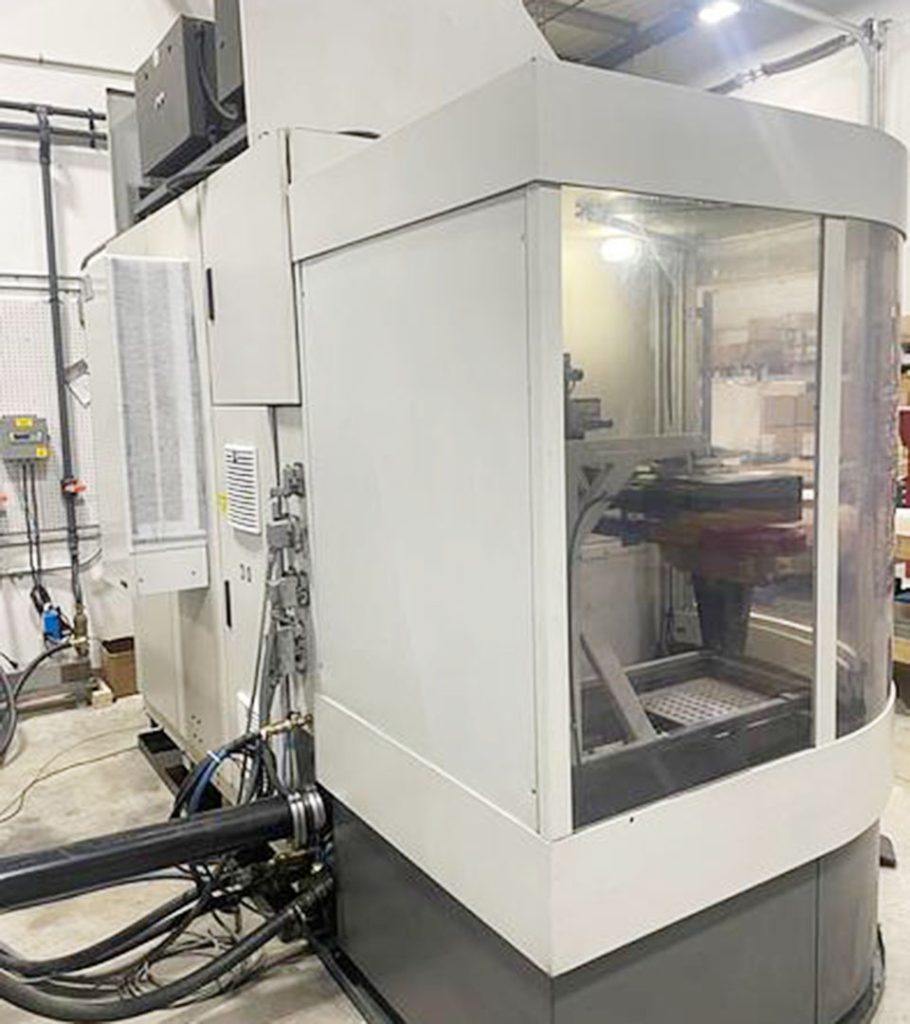

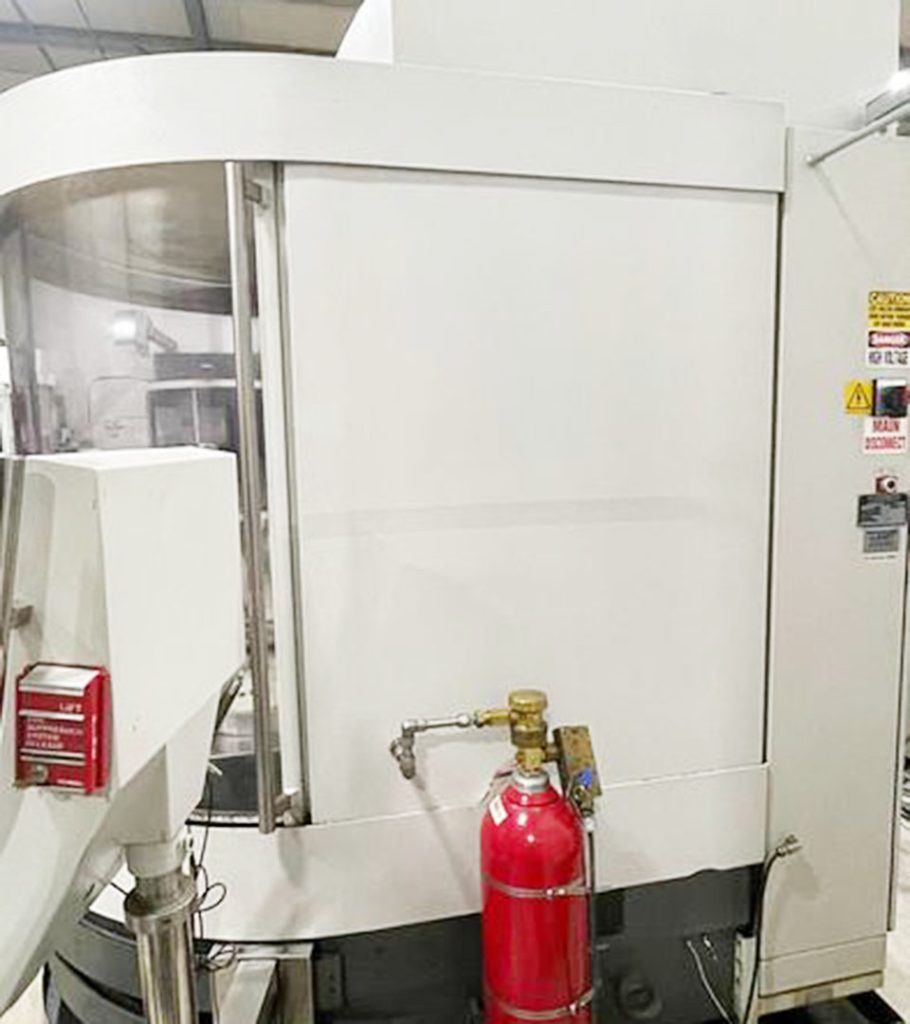

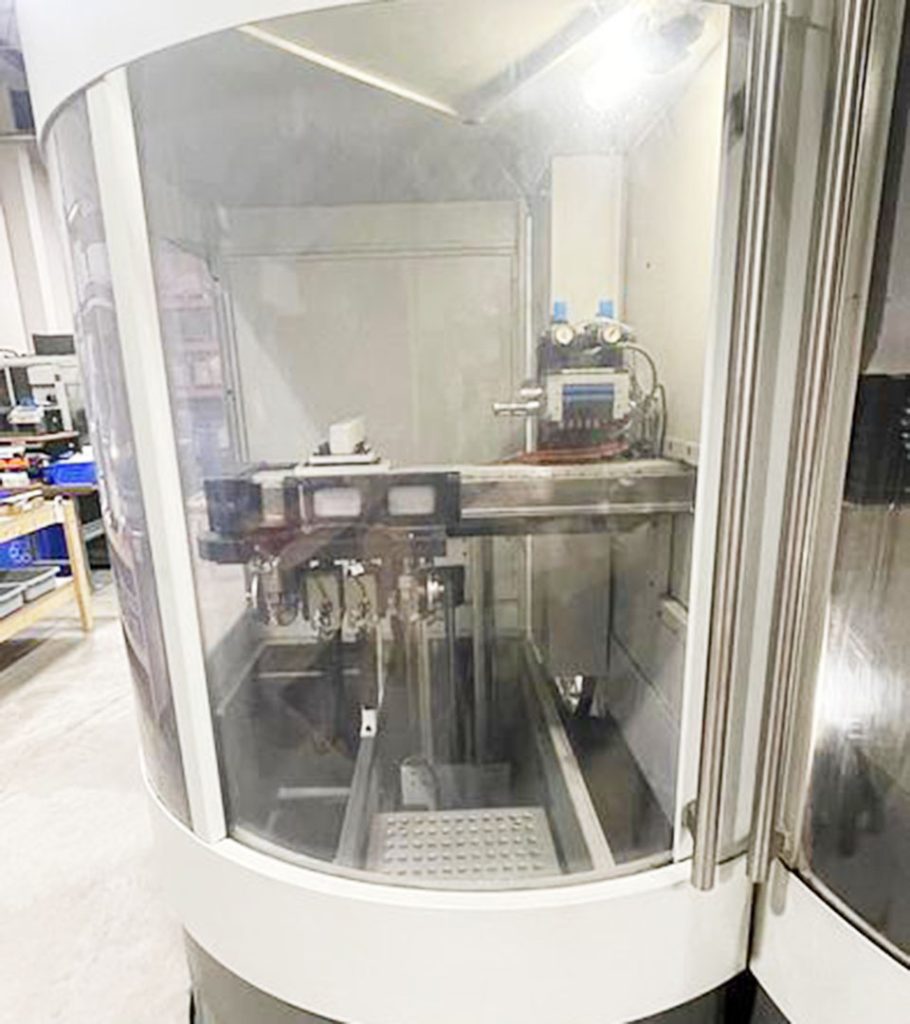

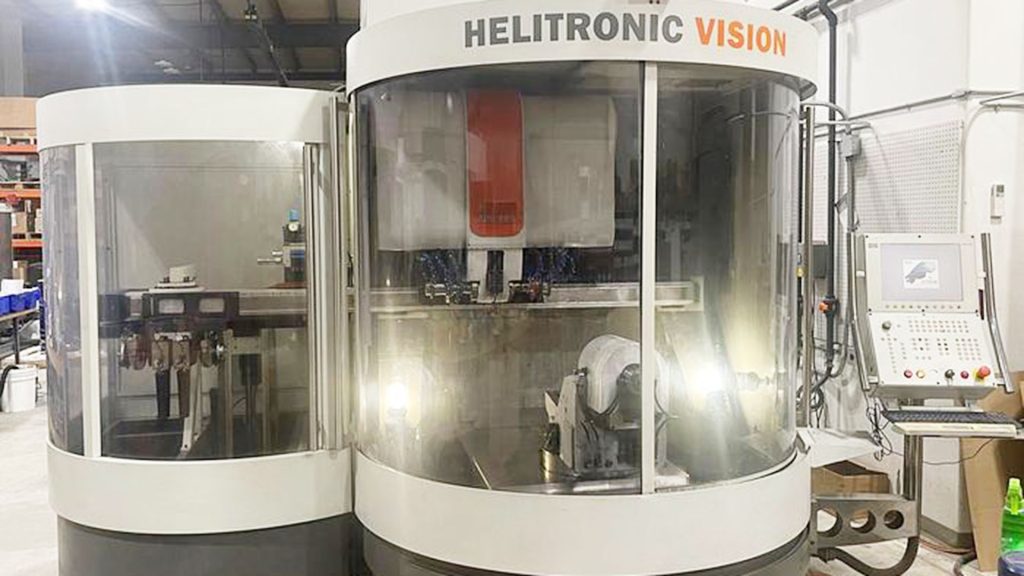

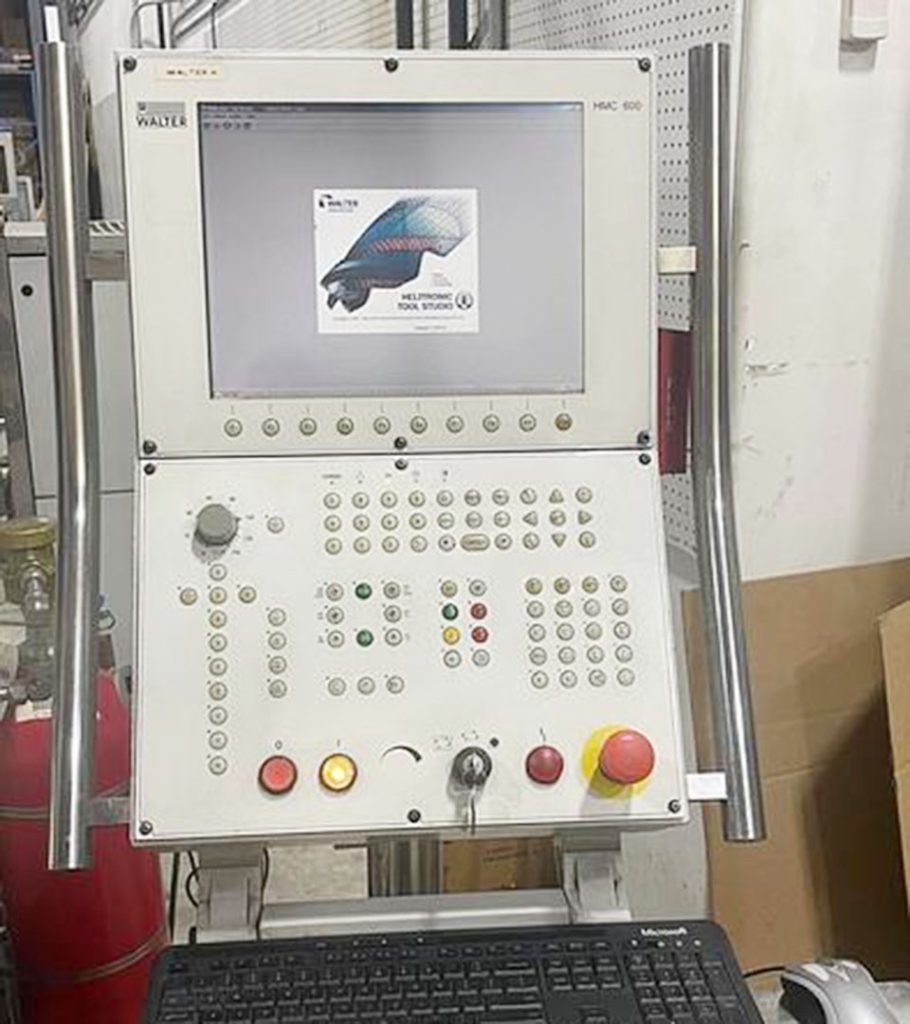

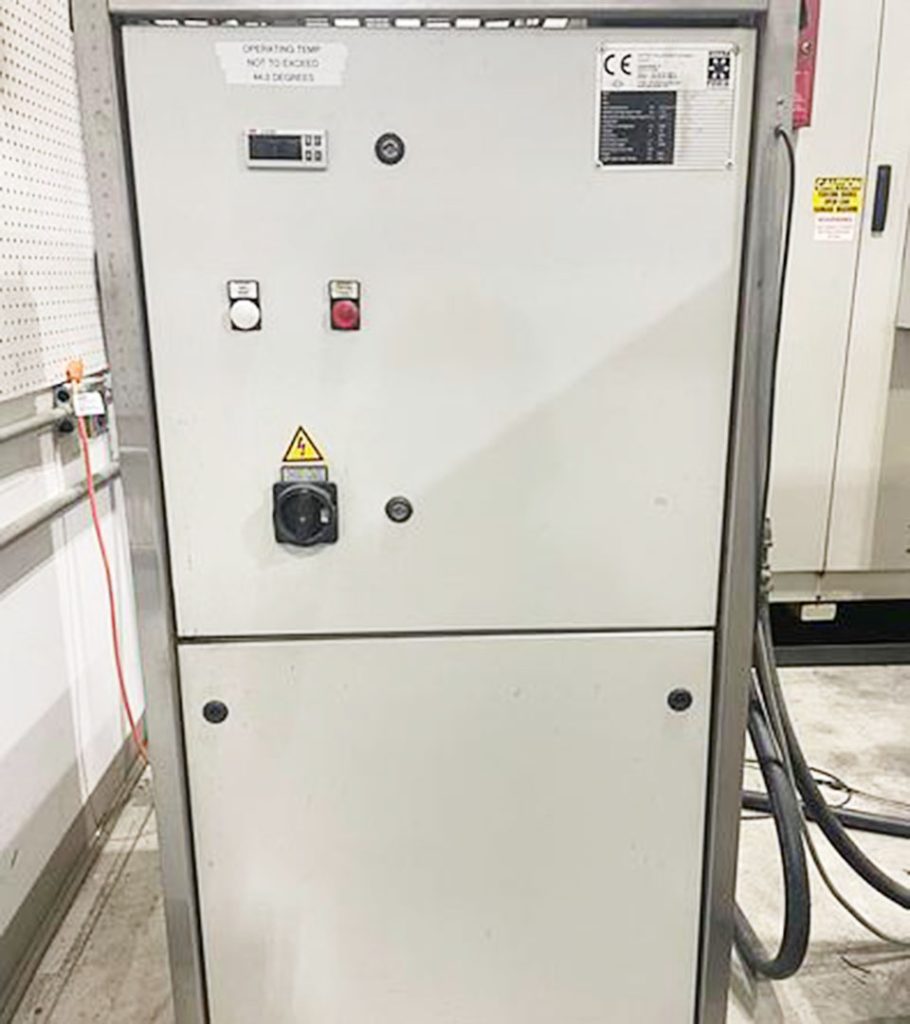

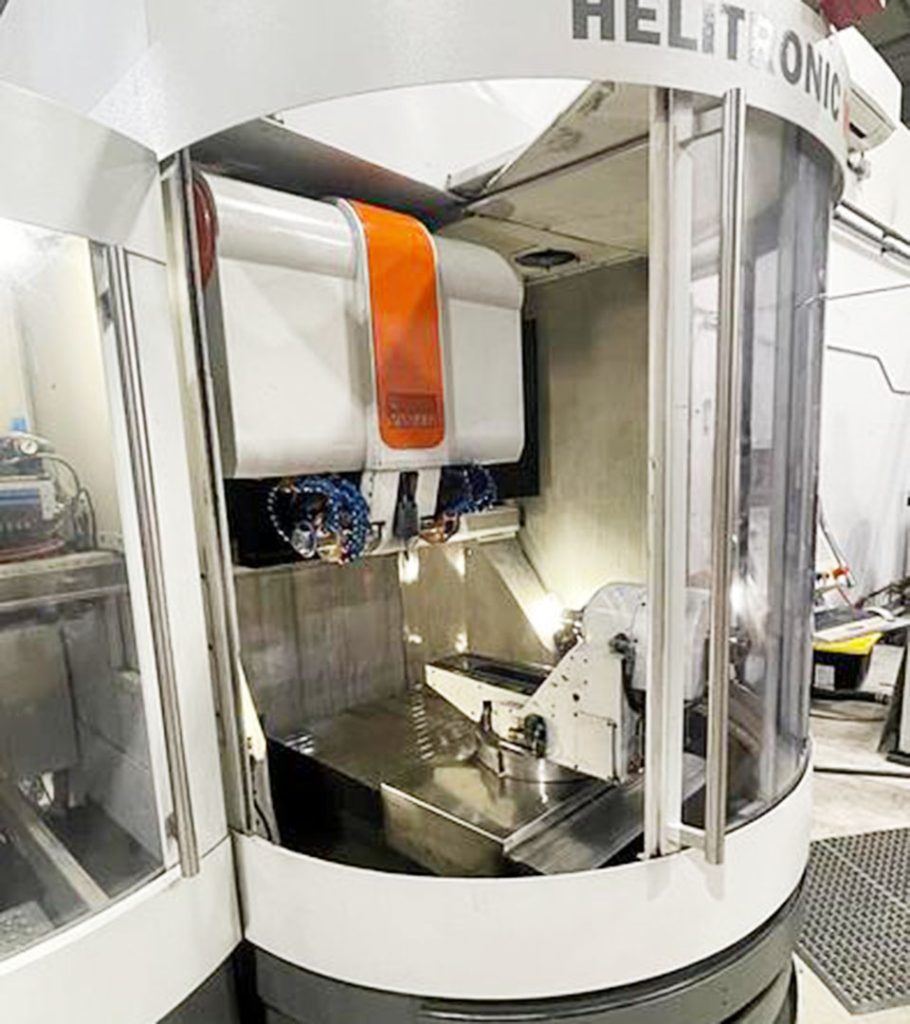

Walter tool grinding machines Helitronic Vision

Posted by：EurasiacomDate Posted：2023-12

Brand：Walter? ? Type：Helitronic Vision? ? Category：Tool grinding machines

Technical Parameter

Manufacturer	Walter
Model	Helitronic Vision
Year	2005
Longitudinal movement (X-axis)	480 mm
Y axis vertical movement	320 mm
Z-axis transverse movement	700 mm
Rotary table swivel range C-axis	+/- 200 °
Workpiece carrier holder	ISO 50
Max. Workpiece diameter	320 mm
Workpiece length	Circumferential grinding 370 mm
Workpiece length for face machining	320 mm
accuracy linear resolution	0.0001 mm
radial resolution	0.0001 °
Diameter of the spindle	100 mm
Diameter of the grinding wheel	200 mm
Grinding spindle speed	0 – 12,000 rpm
Top performance	30 kW
Connected load	35 kW (400 V / 50 Hz)
Weight approx	7,100 kg
Dimensions L x W x H	3649 x 2490 x 2301 mm
colour	gray RAL 7035/7043
